Description
Leica Rugby CLI Upgrade options |
||

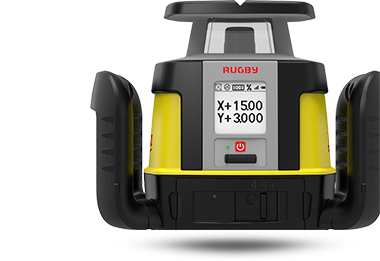

| Base unit |  |
HORIZONTAL LASER WITH INVISIBLE BEAM Ideal for: Concrete and formwork levelling, Land levelling, Rail Applications |
| CLX 900 |  |
HORIZONTAL FULLY AUTOMATIC LASER WITH INVISIBLE BEAM Horizontal, and fully automatic dial-in (DG & MC) grade laser wit invisible beam. + 20rps for usage with machine control, + Multiple pairing (max. 5 laser with one Combo). |
 |
Site preparation Automated machine control systems for slope and flat work. |
 |
Grade checking Check grades easily and reliably. |
|
 |
Parking areas Single and dual slopes ensure proper drainage from parking areas. |
 |
Parking islands Set the forms for parking areas to match site requirements. |
|
 |
Slopes for ramps and driveways Dial-in or catch slope in single or dual axis. |
 |
Formwork verticality Vertical alignment of forms using slope match function. |
|
 |
Set out walls Align two points and mark position of wall using slope catch function. |
 |
Concrete levelling Check concrete level during the pour. |
|
 |
Formwork levelling Set and level concrete forms. |
 |
Batter board Align building axes using slope catch function. |
|
 |
Set out drywalls Align two points and mark position of drywall using slope catch function. |
 |
Level ceiling Check and level suspended ceiling. |
Leica Rugby |
CLH |
CLA |
CLI |
| Warranty | 5Y/2Y knockdown | 5Y/2Y knockdown | 5Y/2Y knockdown |
| Grade capability* (X/Y Axes) | 8% | 15% | 15% |
| Self-levelling accuracy** | ± 1.5 mm at 30 m (± 1/16″ at 100 ft) |
± 1.5 mm at 30 m (± 1/16″ at 100 ft) |
± 1.5 mm at 30 m (± 1/16″ at 100 ft) |
| Self-levelling range | ± 6° | ± 6° | ± 6° |
| Operating range with Combo, RE 140/160 | 1350 m diameter | 1350 m diameter | 1350 m diameter |
| Remote range | 600 m diameter | 600 m diameter | 600 m diameter |
| Laser class | 1 | 2 | 1 |
| Environmental standard | IP68/MIL-STD-810G | IP68/MIL-STD-810G | IP68/MIL-STD-810G |
| Operating temperature | -20 °C to +50 °C -4 °F to +122°F |
-20 °C to +50 °C -4 °F to +122°F |
-20 °C to +50 °C -4 °F to +122°F |
| Storage temperature | -40 °C to +70 °C -40 °F to +158 °F |
-40 °C to +70 °C -40 °F to +158 °F |
-40 °C to +70 °C -40 °F to +158 °F |
| Rotation speed | 10, 15, 20 RPS | 0, 2, 5, 10, 15, 20 RPS | 10, 15, 20 RPS |
| Batteries (Li-Ion) | Li-Ion | Li-Ion | |
| Battery operating time** | 50 h | 50 h | 50 h |
| Battery charging | 5 h (full charge) 1 h fast charge = 8 h operating |
5 h (full charge) 1 h fast charge = 8 h operating |
5 h (full charge) 1 h fast charge = 8 h operating |
| Dimensions (H × W × D) | 230 mm / 9,1 in 296 mm / 11,7 in 212 mm / 8,3 in |
230 mm / 9,1 in 296 mm / 11,7 in 212 mm / 8,3 in |
230 mm / 9,1 in 296 mm / 11,7 in 212 mm / 8,3 in |
| Weight with batteries | 3.8 Kg / 8,3 lbs | 3.9 Kg / 8,5 lbs | 3.9 Kg / 8,5 lbs |
| * Up to 45° with adapter. ** Accuracy defined at 25°C (77°F) battery life depending upon environmental conditions. All specifications are depending on activated functionality. | |||

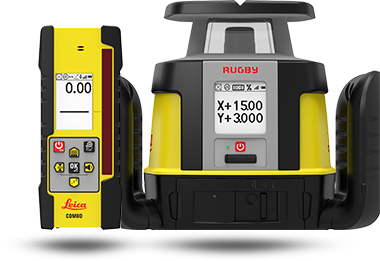

LEICA COMBO (RECEIVER/REMOTE) |
|
| Warranty | 3Y |
| Anti-Strobe |  |
| Working range – Receiver | 1350 m / 4430 ft (diameter) |
| Working range – Remote | 600 m / 1969 ft (diameter) |
| Detection window | 120 mm /4.7 in |
| Digital read out | |
| Offset | |
| Variable detection window length | |
| Audio volumes | 4 (including mute) |
| Detection bandwidth | 0.5, 1, 2, 5 mm |
| Environmental standard | IP67 |
| Batteries (li-ion) / Battery operating time** | Li-Ion 3.7V / 50 h |
| Battery charging | 5 h (full charge) 1 h (fast charge – 8 h operating) |
| Rechargeable battery / charging option with power bank (USB-C) | |
| Operating temperature | -20°C to +50°C, -4°F to +122°F |
| Dimensions (H × W × D) | 205 mm/8,1 in, 86 mm/3,4 in, 32 mm/1.2 in |
| Weight with batteries | 0.4 Kg / 0.9 lbs |
| ** Defined at 25°C (77°F) battery life depending upon environmental conditions. All specifications are depending on activated functionality. | |
